Description

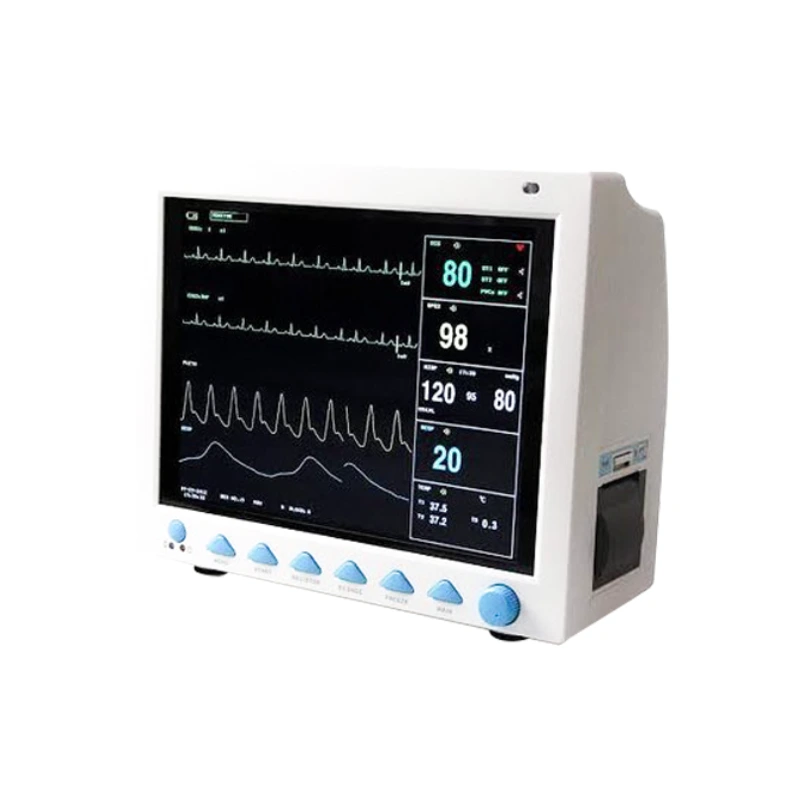

Contec 5-Parameter Patient Monitor
(often part of the CMS series, e.g., CMS-6500 or CMS-8000) tracks five critical physiological parameters:
- ECG (Electrocardiogram): Heart rate and rhythm (3/5-lead).
- SpO2 (Peripheral Oxygen Saturation): Blood oxygen levels with pulse rate.
- NIBP (Non-Invasive Blood Pressure): Systolic, diastolic, and mean arterial pressure.
- RESP (Respiration Rate): Measured via thoracic impedance.
- Temperature: Optional via external probe.
Key Features
- Compact Design: Lightweight and portable for bedside, ambulance, or home use.
- Color TFT Display: 8–12-inch screen with adjustable brightness.
- Multi-Waveform Display: Real-time ECG, SpO2 plethysmograph, and respiratory waveforms.
- Alarm System: Customizable thresholds for HR, SpO2, BP, and apnea.
- Battery Backup: Rechargeable lithium battery (2–4 hours runtime).
- Data Storage: Stores trends and alarms (e.g., 72-hour NIBP data).
- Connectivity: USB/RS-232 ports for data export (optional Wi-Fi/Bluetooth in advanced models).
Technical Specifications
| Parameter | Range/Accuracy |
| ECG | 30–300 BPM (±2% accuracy). |
| SpO2 | 0–100% (±2% accuracy, 30–250 BPM pulse rate). |
| NIBP | Adult/Pediatric modes (0–280 mmHg systolic). |
| Respiration Rate | 0–120 breaths/min (impedance method). |
| Temperature | 0–50°C (±0.2°C accuracy, with probe). |
| Power Supply | 100–240V AC (global voltage) + battery. |
| Dimensions | ~30 x 25 x 10 cm (varies by model). |
| Weight | ~3–5 kg. |
Applications
- Hospitals/Clinics: General wards, ICUs, emergency rooms.
- Ambulances: Portable monitoring during patient transport.
- Home Care: Chronic condition management (e.g., COPD, hypertension).
- Rural/Remote Healthcare: Affordable vital sign tracking in low-resource settings.
Safety and Alarms
- Adjustable Limits: Set thresholds for HR, SpO2, BP, and RESP.
- Audible/Visual Alerts: Triggers for arrhythmia, desaturation, hypertension, or apnea.
- Lead Off Detection: Alerts for disconnected ECG electrodes or SpO2 sensor.
Setup and Operation
- Connect Sensors: Attach ECG leads, SpO2 probe, NIBP cuff, and temperature probe.
- Power On: Initialize calibration for accurate readings.
- Adjust Settings: Customize alarm limits and display layout.
- Monitor: Review real-time data and trends.
Maintenance
- Daily: Clean sensors and screen with a soft, damp cloth.
- Weekly: Check electrode gel and cuff integrity.
- Monthly: Calibrate NIBP module (if required).
Key Takeaways
Contec 5-Parameter Patient Monitor is ideal for healthcare facilities prioritizing cost-effectiveness and portability without compromising essential monitoring capabilities. It excels in:
- Routine patient surveillance in general wards.
- Emergency transport and home healthcare.
